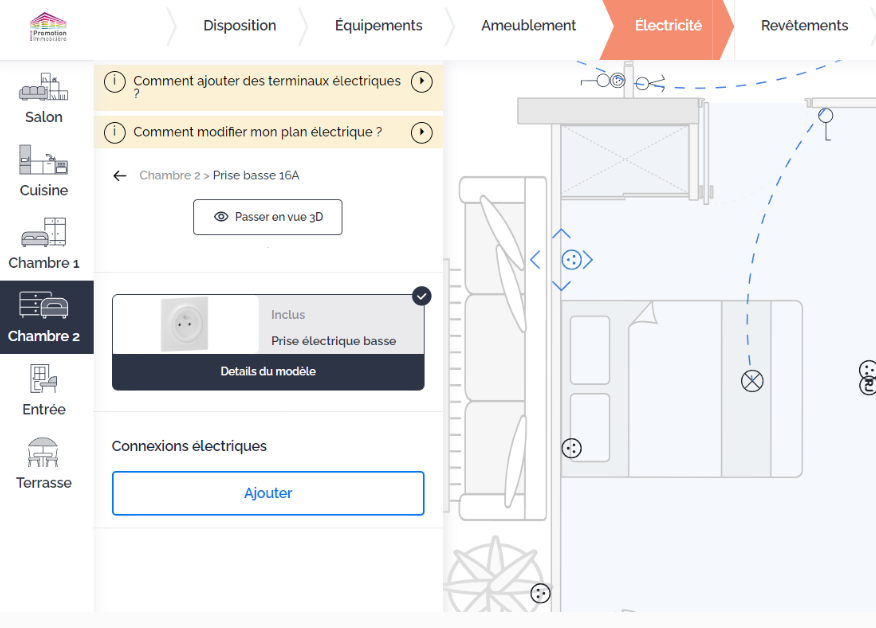

To understand what a symbol on your electrical plan represents, click on the item on the plan. The object menu will appear on the left side of your screen, showing the name of the equipment.

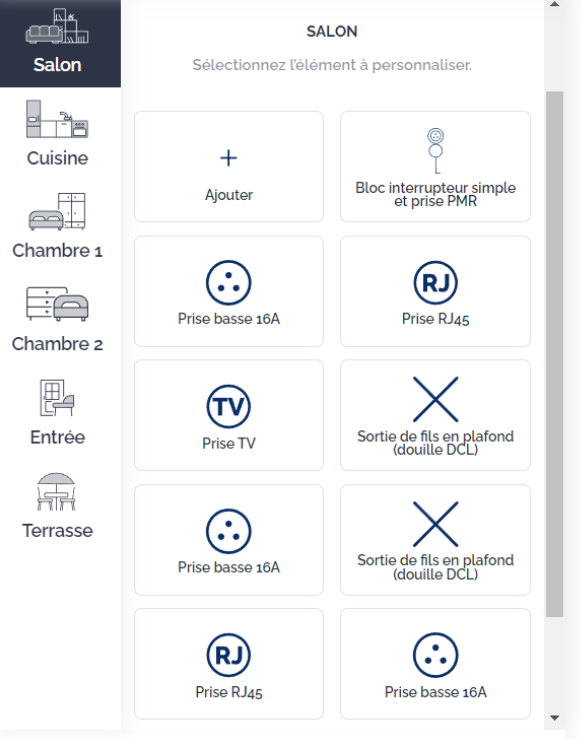

You can also view the list of electrical equipment placed in each room of your home. Each symbol is associated with the name of the corresponding electrical equipment.
Make sure to check out the video tutorials available in your configurator in the yellow banners at the top left of your page, under the "Electricity" tab.
